Арт. TC-R31640 Spec:E/B/N/V4.4
40-канальный NVR • Входящий/исходящий трафик: 640/320 Мбит/с • Сжатие: S+/H.265, S+/H.264 • Декодирование: 16Мп (30к/с)×4 или 1080р (30к/с)×32 • 16-канальный синхронный просмотр • HDD до 24 ТБ • HDMI1 + VGA1, HDMI2 + VGA2 • HDMI до 4K • 2×RJ-45 (10/100/1000 Мбит/с) • S+265 (экономия места до 75%) • Обновление через облако
Подробнее
по запросу
Описание
Сетевой IP видеорегистратор 40 каналов; Входной/выходной битрейт 640/320 Мбит/c; Запись до 16Мп; Видеосжатие: S+265; H.265; S+264; H.264; Хранилище: 16×SATA III 3.5’’ до 24ТБ(HotSwap); 1x eSATA; Резервирование: JBOD, RAID0/1/5/6/10; Видеовыходы (независимые): HDMI x2 (4K/60Гц), VGA x2 (1080p/60Гц). Интерфейсы: 2×RJ-45 10/100/1000BASE-T; 1×RS-232; 2×RS-485; Аудио вход/выход: 1/1 (Двухсторонняя связь); Тревожные вход/выход: 16/4; 2×USB2.0; 1×USB3.0; Интеграция: ONVIF S/T/G; RTSP; HTTP API(CGI); SDK; Видеоаналитика (камера): пересечение линии, двойной линии, периметр, оставленные/пропавшие предметы, детекция/распознавание лиц, классификация человек/ТС, распознавание номеров и т.д.; Поиск по атрибутам (пол; возраст; очки; мед.маска; температура тела, цвет/тип ТС; номерной знак и т.д.); Питание: 100-240В AC/резервный блок питания (<25Вт без HDD); Габариты: 549(Д)×485(Ш)×132(В)мм. Рабочая температура: -10°C-+55°C; Бесплатное ПО: Easy7 VMS(Win, MAC OS)/EasyLive Plus (Android, iOS)
Документация
Паспорт TC-R31640 EBNV4.4_en.pdf
Документация
Паспорт TC-R31640 EBNV4.4_en.pdf
Характеристики
| Video and Audio | |
| Access Channel | 40 |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 320Mbps |
| Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Decoding Capability | 16MP(30fps)×4, 12MP(30fps)×5, 8MP(30fps)×8, 6MP(30fps)×10, 5MP(30fps)×12, 4MP(30fps)×16, 3MP(30fps)×21, 1080P(30fps)×32, 720P(30fps)×40, 4CIF(30fps)×40 |
| Playback Decoding Capability | 16MP(30fps)×4, 12MP(30fps)×5, 8MP(30fps)×8, 6MP(30fps)×10, 5MP(30fps)×12, 4MP(30fps)×16, 3MP(30fps)×16, 1080P(30fps)×16, 720P(30fps)×16, 4CIF(30fps)×16 |
| Third-party Camera Access | ONVIF(Profile S/T); RTSP |
| HDMI Output | HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K)3840×2160(30Hz/60Hz) |
| VGA Output | VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz) |
| Multi-screen Display | Independent Output: HDMI1/VGA1: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 HDMI2/VGA2: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 |
| Audio Input | 1-ch, 3.5mm |
| Audio Output | 1-ch, 3.5mm; BNC |
| Two-Way Audio | 1-ch, 3.5mm, using the audio input |
| Compression Standard | |
| Video Compression | S+265; H.265; S+264; H.264 |
| Audio Compression | G.711A; G.711U; AAC; ADPCM_D |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP |
| Client | Easy7 VMS (Win, MAC OS) |
| Mobile Client | EasyLive Plus (Android, iOS) |
| System Compatibility | ONVIF(Profile S/T/G); RTSP; CGI; SDK; P2P |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Recording Playback | |
| Multi-channel Playback | 16 |
| Record Mode | Manual Recording; Alarm Recording; Schedule Recording |
| Storage Method | Local HDD, eSATA |
| Backup | USB storage device, eSATA, Network |
| Playback Function | Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay |
| Dual Stream Record | Yes |
| Alarm | |
| General Alarm | Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR) |
| Exceptions Alarm | Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot- spare Exception; Array Exception; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload |
| Intelligent Analytics | |
| AI by Camera | Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap; Loitering; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Safety Helmet Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Alarm; Face Recognition; Human/Vehicle Classification; LPR |
| Face Recognition | |
| Face Picture Library | Up to 300 face libraries Up to 100000 base images |
| Face Picture Comparison | Yes (Cooperate with facial recognition IPC) |
| Search | |
| VCA Search | Early-warning Search; Behavior Search; Safety Helmet Search; Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search(Search by face attributes/event); Human Search(Search by human attributes) |
| VCA Report | Heatmap; People Counting; Face Statistics |
| Face Attributes Search | Gender; Age; Glasses; Face Mask; Body Temp. |
| Human Attributes Search | Gender; Age; Backpack; Face Mask; Glasses; Hair; Carrying Status; Top Color; Bottom Color; Top Type; Bottom Type; Riding Status |
| Vehicle Attributes Search | Vehicle Color; Vehicle Type; Plate Color; Plate number; Non-Motor Vehicle Passenger Status; Direction |
| Storage | |
| HDD Capacity | Up to 24 TB capacity for each HDD |
| Disk Group | 8 Disk Group |
| RAID | JBOD, RAID0, RAID1, RAID5, RAID6, RAID10 (To enable RAID, please use surveillance-grade AI disks or enterprise-class disks.) |
| Hot Swapping | Yes |
| External Port | |
| eSATA | 1×eSATA |
| USB | 2×USB2.0; 1×USB3.0 |
| HDMI | 2×HDMI(supports up to 4K resolution output) |
| VGA | 2×VGA |
| Network Interface | 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| SATA | 16×SATA interface |
| RS-232 | 1×RS-232 |
| RS-485 | 2×RS-485 |
| Alarm I/O | 16-ch, TTL inputs, 3mA, 3.3VDC; 4-ch, relay outputs, 1A, 24VDC |
| General | |
| UI Language | Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek |
| Power Supply | 100~240V AC |
| Power Consumption | <25W(HDD not included, idling) |
| NetWeight | 12.05Kg |
| GrossWeight | 18.15Kg |

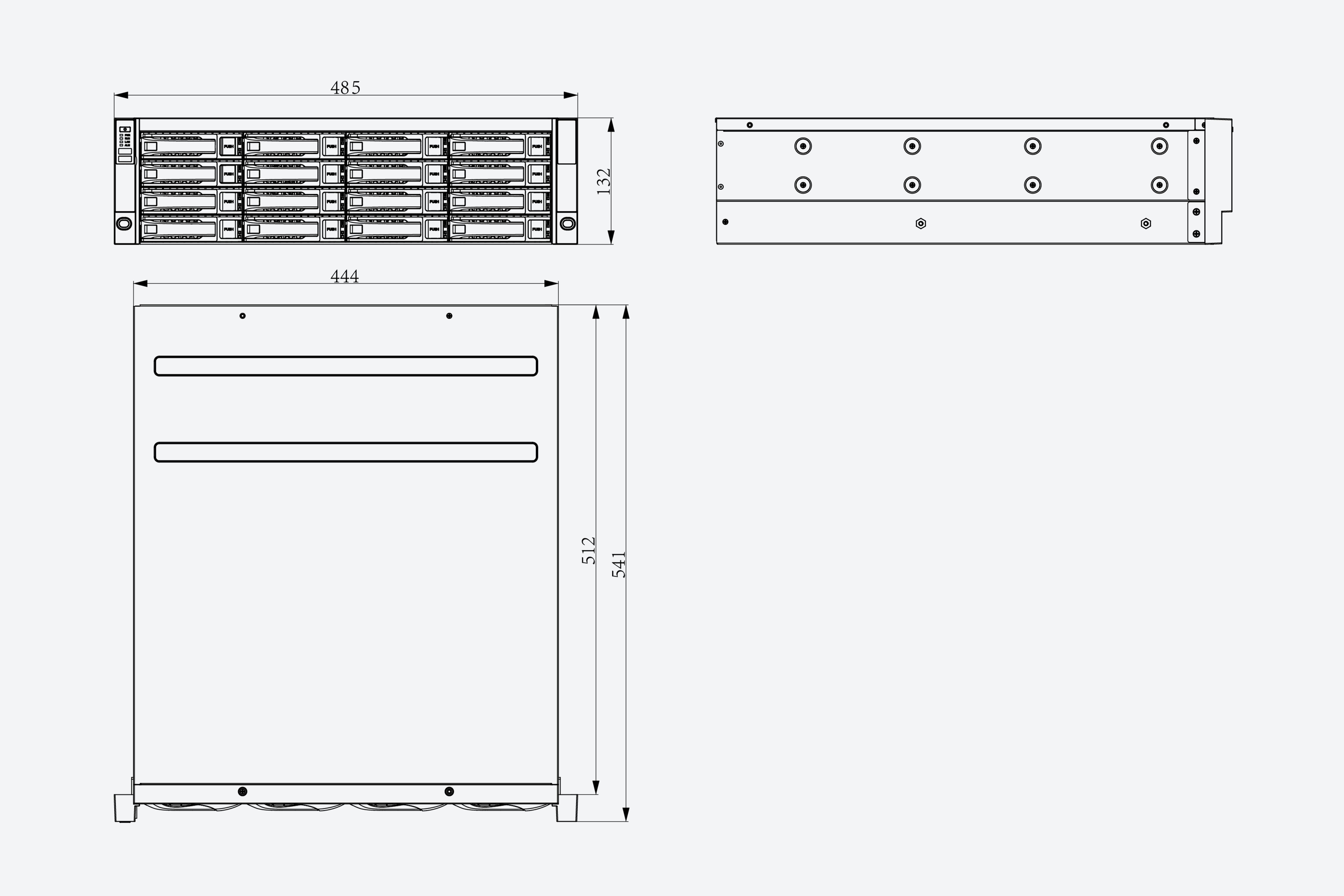

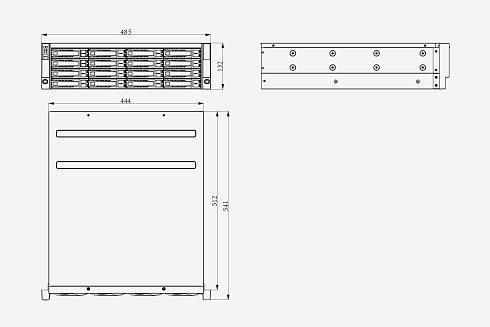

| Boundary Dimensions | 549(L)485(W)132(H)mm |
| Package Dimensions | 685(L)630(W)290(H)mm |
| Operating Temperature | -10℃~+55℃ (+14℉~+131℉) |
| Operating Humidity | 10%~90%RH (non-condensing) |
| Storage Temperature | -20℃~+60℃ (-4℉~+140℉) |
| Package Kit | Network Video Recorder*1; Screw Pack*1; Mouse*1; European Standard Power Cord*1; Instructions*1; Parts List*1 |
